ASUS HD7970 Temperatures

[saiyaman]

Hey guys,

I have a ASUS HD7970 3GD-5 card. It idles around 40(with air conditioner on) to 55c. The problem is before summer started (might sound sort of funny), my load temperatures for the card were around 77 to 80C. Now in the heat of summer I get upto 88 or even 89 and 90C. Especially Farcry 3 which drives it toward 89 or so.

Any suggestions as to how I can improve my temperatures for the card? By the way I always turn off AA and AF for every game. I'm using the stock cooler and the card looks like the reference HD7970.



[shivakanth.sujit]

WOW!! Those are really high temps. Post a few pics of your cabinet and the temps. You better add a few fans to the cabinet or the card may get spolied.

Shiva



[topgear]

90C load temp though is high but not alrming but the load temp shoul remain under 80c - that's generally the loa temp of most stock HD7970 cards.

Mention your whole pc config or better a few pics of the cabinet with side panel closed and in open position.



[anirbandd]

90C load temp though is high but not alrming but the load temp shoul remain under 80c - that's generally the loa temp of most stock HD7970 cards.

Mention your whole pc config AND a few pics of the cabinet with side panel closed and in open position.

please do this..



[skeletor]

I won't worry too much. My HD 6950 also goes to 90 degrees in summer. Consistently over 90? Then cleaning is required.



[saiyaman]

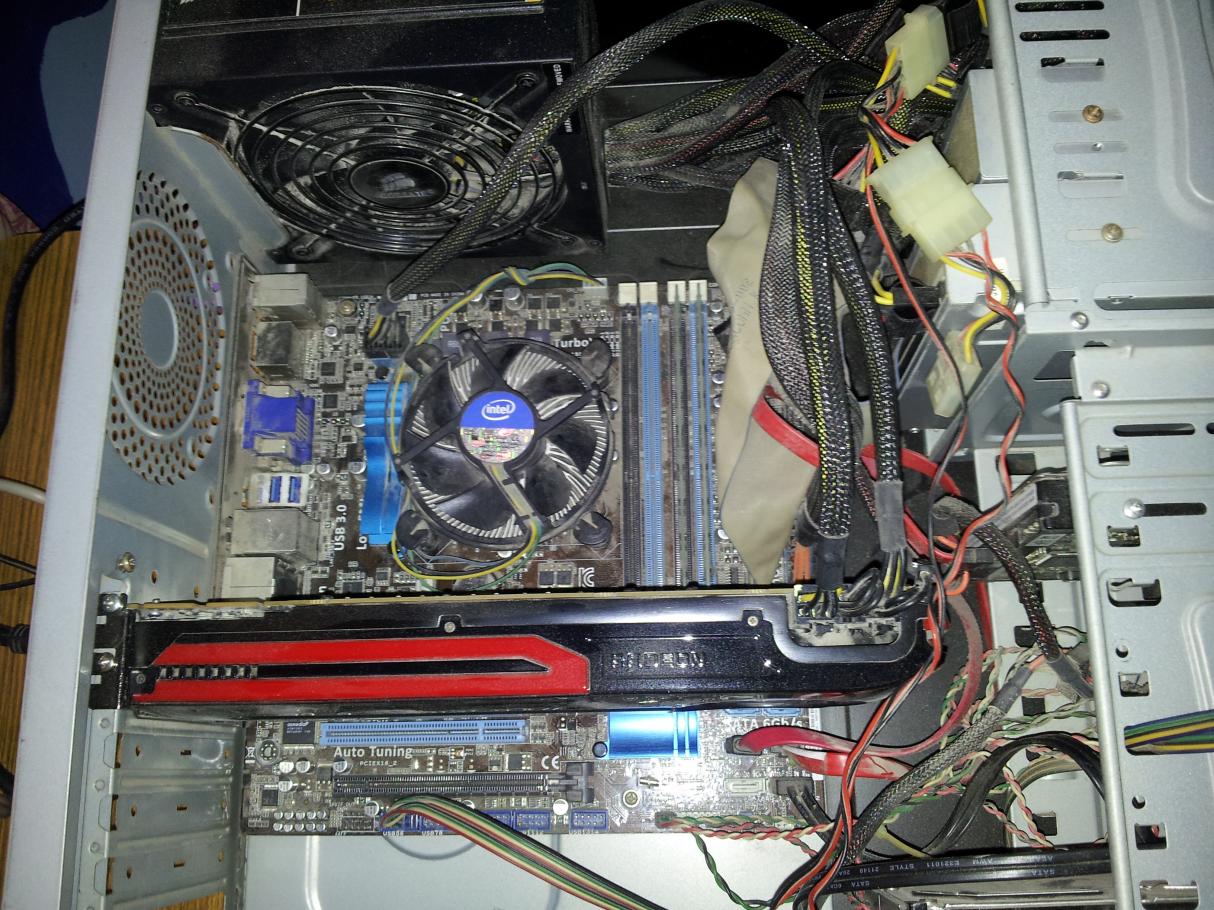

Images uploaded.

Configuration:

Processor: Intel Core i5 2500K
RAM: 2 x 4 GB DDR3 Corsair
Motherboard: ASUS P8H67-M PRO
SMPS: Corsair TX850v2
OS: Windows 7 Home Premium 64 bit
Graphics: ASUS HD7970 3GD-5

@ico: Oh that's nothing to worry about? I was worried a little since 85 and above seems....dangerous. I recently cleaned it about 3 to 4 days ago.



[Godoftheforbiddenlight]

change the cabby immediate and do some cable management man :/ how will the air flow ?? ...also is it a reference card ?? they do have high temps



[saiyaman]

change the cabby immediate and do some cable management man :/ how will the air flow ?? ...also is it a reference card ?? they do have high temps

Reference card yes. What is the standard load temperature for reference? The cables don't come around the card but do you mean anywhere near the card is not good?



[sumonpathak]

the cabby is not good...how can u expect the high power GPU to remain cool in a tin ka dabba?



[saiyaman]

the cabby is not good...how can u expect the high power GPU to remain cool in a tin ka dabba?

The cabinet? I misunderstood it to be "cable" lol. Ah well I realize that I have not changed it for about 4 to 5 years. Which is good?



[harshilsharma63]

The cabinet? I misunderstood it to be "cable" lol. Ah well I realize that I have not changed it for about 4 to 5 years. Which is good?

post a pic of your cabinet interiors.



[saiyaman]

post a pic of your cabinet interiors.

Uhh I already did. Check the posts.



[shreymittal]

dude change your cabinet asap and get corsair 400r or nzxt phantom.



[saiyaman]

dude change your cabinet asap and get corsair 400r or nzxt phantom.

Wow both of those cabinets look great. The phantom looks good too is that available in India? Corsair I checked on FK it's sold out. Probably need to try somewhere else.

Update: I have gone through my cabinet and somehow managed a temporary solution till I get a new cabinet.

Is this okay now?



[anirbandd]

^

you need new cabby ASAP.



[harshilsharma63]

Wow both of those cabinets look great. The phantom looks good too is that available in India? Corsair I checked on FK it's sold out. Probably need to try somewhere else.

Update: I have gone through my cabinet and somehow managed a temporary solution till I get a new cabinet.

Is this okay now?

View attachment 10301

no offence bro, but your cable management sucks.



[shreymittal]

Wow both of those cabinets look great. The phantom looks good too is that available in India? Corsair I checked on FK it's sold out. Probably need to try somewhere else.

Update: I have gone through my cabinet and somehow managed a temporary solution till I get a new cabinet.

Is this okay now?

View attachment 10301

That is looking great
Man change your cabinet asap you are insulting that graphic card there and your cabinet is not a cabinet it is tin ka dabba
Yup both cabinet are available in India where do you live??



[saiyaman]

no offence bro, but your cable management sucks.

I agree.

That is looking great
Man change your cabinet asap you are insulting that graphic card there and your cabinet is not a cabinet it is tin ka dabba
Yup both cabinet are available in India where do you live??

Chennai. I looked them up it's around 6k or so. Will have to see if I can find it here.



[ashis_lakra]

Give some breathing space for the computer organs along with new skin. They might suffocate and die before you know.



[shreymittal]

Get this asap
*www.thinkdigit.com/forum/showthread.php?t=173432
