OP
mastercool8695
Cyborg Agent
ok..
leave it..
are you guys confirmed that it'll work on my setup ??
leave it..
are you guys confirmed that it'll work on my setup ??
Wifi for Cable Internet
OP
mastercool8695
Cyborg Agent
^^ ok..
and i'm not in a hurry..
just thinking it'll be better than this setup
..
and i'm not in a hurry..
just thinking it'll be better than this setup
..
mitraark
Decrepit
Well I received my TP-Link WR841N today, and it took about 10 minutes to setup
I hope what i am writing will be clear enough to follow, if you face any difficulties I will consider uploading some screenshots.
* Power the Router, Connect the LAN Wire RJ-45 ( which was previously connected to your PC) to the blue port of the router, and another LAN cable will be provided in the box, connect your router with your PC LAN port with that.
* Go to browser , enter 192.168.0.1 , Username and password is 'admin' for both ( without the quotes )

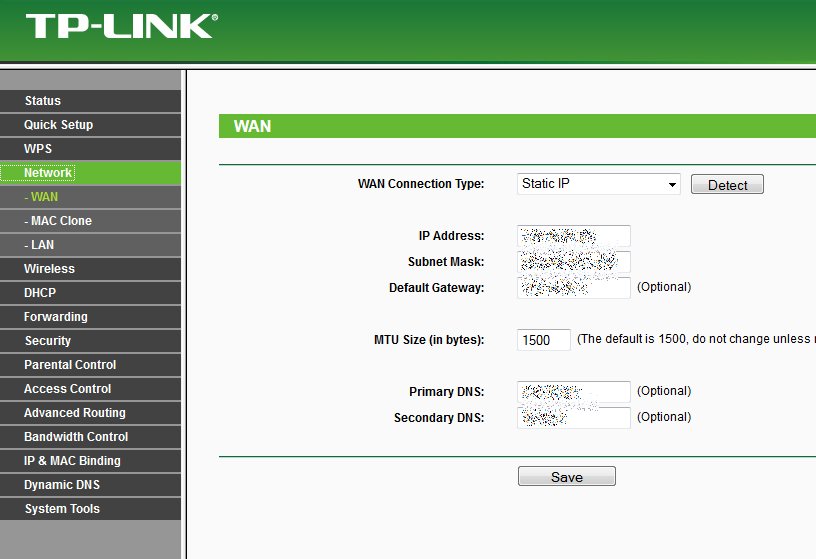

* Go to Network -> WAN
*www.thinkdigit.com/forum/attachments/networking/10899d1370716090-wifi-cable-internet-tplink1.jpg
This is where you put the IP/Subnet Mask/Default Gateway/DNS Server/Alternate DNS
You already have these values in your IPv4 settings in Network and Sharing Center Properties ( if you don't know about that I can explain ) I blurred mine just in case.

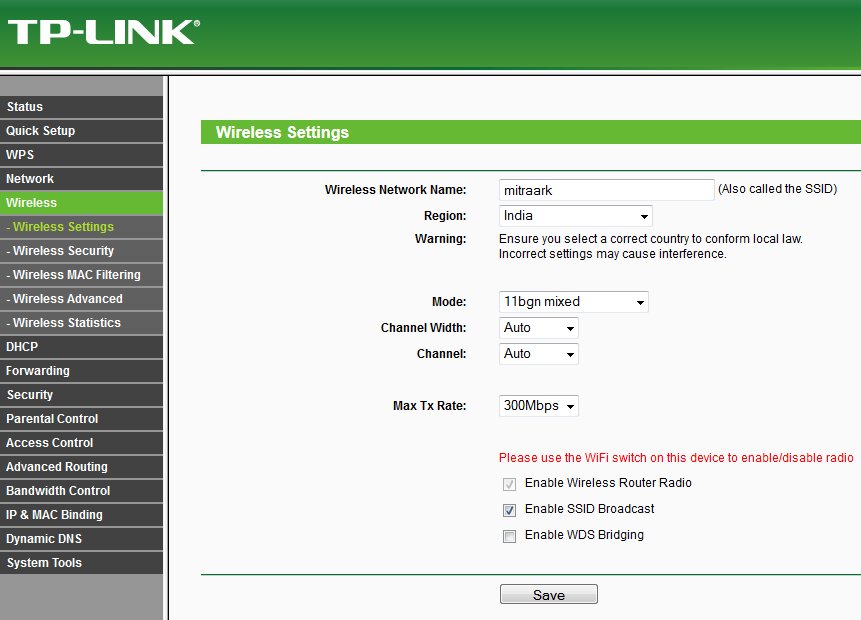

* Go to Wireless -> Wireless Settings
*www.thinkdigit.com/forum/attachments/networking/10900d1370716120-wifi-cable-internet-tplink2.jpg
I just set my Wi Fi Connection Name here, and selected the country. The rest are at default values.

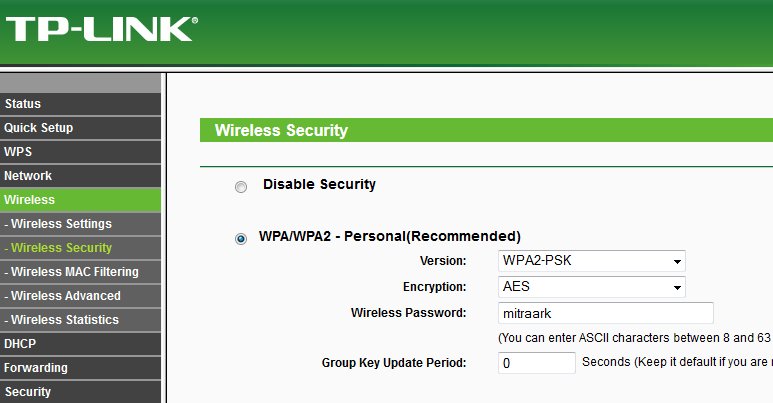

* Go to Wireless -> Wireless Security
*www.thinkdigit.com/forum/attachments/networking/10901d1370716149-wifi-cable-internet-tplink3.jpg
Set your Wi Fi Connection password here ( mine is same as my connection name, don't get confused, you can enter any other value here)
After that, you'll need to set your IPv4 settings as "Obtain IP Address Automatically" and "Obtain DNS Server Automatically"
That was it, it took less than 10 minutes i think, internet running fine on my PC, and I also connected my Mobile, 2 other android mobiles, a Nokia E5, and my laptop, internet working on all machines. Browsing, IDM, uTorrent, everything is working ( Even if my PC is off )
Just one thing, if you are familiar with the software HFS, it's not working, as my PC's IP is currently something like 192.168.1.100 and not the LAN Address given to you by Cable. I am looking into it, there's something called DMZ, i'll let you know if you need to.
I hope what i am writing will be clear enough to follow, if you face any difficulties I will consider uploading some screenshots.
* Power the Router, Connect the LAN Wire RJ-45 ( which was previously connected to your PC) to the blue port of the router, and another LAN cable will be provided in the box, connect your router with your PC LAN port with that.
* Go to browser , enter 192.168.0.1 , Username and password is 'admin' for both ( without the quotes )
* Go to Network -> WAN
*www.thinkdigit.com/forum/attachments/networking/10899d1370716090-wifi-cable-internet-tplink1.jpg
This is where you put the IP/Subnet Mask/Default Gateway/DNS Server/Alternate DNS
You already have these values in your IPv4 settings in Network and Sharing Center Properties ( if you don't know about that I can explain ) I blurred mine just in case.
* Go to Wireless -> Wireless Settings
*www.thinkdigit.com/forum/attachments/networking/10900d1370716120-wifi-cable-internet-tplink2.jpg
I just set my Wi Fi Connection Name here, and selected the country. The rest are at default values.
* Go to Wireless -> Wireless Security
*www.thinkdigit.com/forum/attachments/networking/10901d1370716149-wifi-cable-internet-tplink3.jpg
Set your Wi Fi Connection password here ( mine is same as my connection name, don't get confused, you can enter any other value here)
After that, you'll need to set your IPv4 settings as "Obtain IP Address Automatically" and "Obtain DNS Server Automatically"
That was it, it took less than 10 minutes i think, internet running fine on my PC, and I also connected my Mobile, 2 other android mobiles, a Nokia E5, and my laptop, internet working on all machines. Browsing, IDM, uTorrent, everything is working ( Even if my PC is off )
Just one thing, if you are familiar with the software HFS, it's not working, as my PC's IP is currently something like 192.168.1.100 and not the LAN Address given to you by Cable. I am looking into it, there's something called DMZ, i'll let you know if you need to.
OP
mastercool8695
Cyborg Agent
^^ Thanks. Mitraark
will PM you if I need additional Assistance..
and ofcourse..
its an Awesome tutorial there..
thanks..
will PM you if I need additional Assistance..
and ofcourse..
its an Awesome tutorial there..
thanks..
@dashing.sujay,did reliance change something?as i remember you have to login into reliance page once every 24 hours though registered device mac address was for cable broadband.
kg11sgbg
Indian Railways - The Vibrant and Moving INDIA
@mitraark, aren't you toooo casual about your wireless security settings????
Of course if that is for a demo purpose,then all is well.
mitraark
Decrepit
EDIT : Big Mistake, won't happen again, see link in the comment below.
Last edited:
i hope you are joking.
Open Wi-Fi network wraps Mumbai man in bomb blast probe ? The Register
shivakanth.sujit
Padawan
^Very good. Revealing your pass here is dangerous.
Shiva
Shiva
theterminator
Wise Old Owl
Holy Cow! Don't be too casual in life dude. The 'Others' will suck your Internet connection for good as there is unlimited amount of data on the Internet to download.
@mastercool8695 (man thats like a password
) Explain how your cable broadband is set up in your house buddy, it will help in explaining things. Before I was using a router, I had to login everytime when there was a time gap between switching off & on my internet connection. I think my session would expire. But with router, things have simplified A LOT!
OP
mastercool8695
Cyborg Agent
will continue once i discuss with papa.
and that'll be soon (IMO.)
hope that'll be OK.
and that'll be soon (IMO.)
hope that'll be OK.
No, reliance didn't change anything. But logging after 24hrs is not locked to any specific mac address. You can login using any system.
