From AMD FX to Core i5 Haswell Gaming RIG under 55,000

[bssunilreddy]

Hi bavusani,well,since you are adamant about changing the processor/mobo,how about this build-
Intel Core i5 4670K -16100,
Gigabyte GA-Z87M-D3H -9500,
Sapphire R9 280X 3GB Dual-X -23000,
Cooler Master R4-LUS-07AB-GP Cooler -1265(The 10AB-GP is out of stock on Flipkart)
Cooler Master CM Essentials 140 Cooler-629
TOTAL -50,494.

I quoted prices from Flipkart because their prices are often the highest,so street/local prices are lower.
Also,why are you throwing away your H60?It's working perfectly fine and if it is not working fine,have you tried Corsair link?It's free.
I know I have overshot the budget of 50k,but only by .5k,which depends on the OP.
And you do not need 6 Fans to cool your GPU.I am using a 200mm fan and another 140mm only in my HAF 912,my 280X idles at 35/load at 63.And it is an OC edition.

Hope I helped.
PS-Thanks,sameerdatta.

I chose R9 270X because after 2 years I might need to upgrade my GPU so I was just saving for that occasion as said by harshil.My Corsair H60 is a older edition and I want the new edition and Can I get that corsair link for free? How? Please elaborate.
How can I make a push-pull fan setup for Corsair H60 because only 1 120mm fan will be supplied by Corsair and also I need the necessary screws or bolts for the additional fan if at all I can get from Corsair. How can I ask Corsair for a separate set of screws and the Corsair Link if I need it?
PS: I will only be doing in case of Intel just mild overclocks of 500MHz increments only.



[PratikV]

I am in the same Dilemma, as you said. I am getting a similar/same system like yours but still not able to make decision about the graphics whether to get R9 270X or R9 280X.

If possible could anyone please post a demo how to do push pull setup. i Have corsair 400R now.



[moltenskull]

Okay,if you plan on upgrading your GPU within the next two years,then I too support your decision.Go for the R9 270X...if the 280X is out of budget for you at the moment...But a stronger GPU almost always never hurts..

And looks like I was only partially wrong about Corsair Link (it's the software I am talking about).It's free and helps you monitor your temps,but does not let you control your fan speed on the radiator in the H60.At least ,that is what it seems from this thread-

Corsair Link Commander - compatible with H60? - The Corsair Support Forums

I was of the opinion that you could control your fan speed via Corsair Link,even in the H60 and set them to performance mode to achieve noisier and cooler results.And as for Push-pull setup,it is only an arrangement of a couple of fans,one pushing air onto the radiator and the other fan pulling air from the radiator.I Googled a pic of your H60.So,to make sure,are there 4 screw holes at the back of your radiator?Just get a (120mm for the H60)fan,four screws (the long ones used to bolt 200mm fans onto the case) ,attach the fan (correctly,after looking at the direction of air flow of the fans and yes,the arrows do matter) ,plug in the fan on your motherboard and you have a push-pull setup.

*www.corsair.com/us/corsair-link-techzone/

Corsair Link v2.

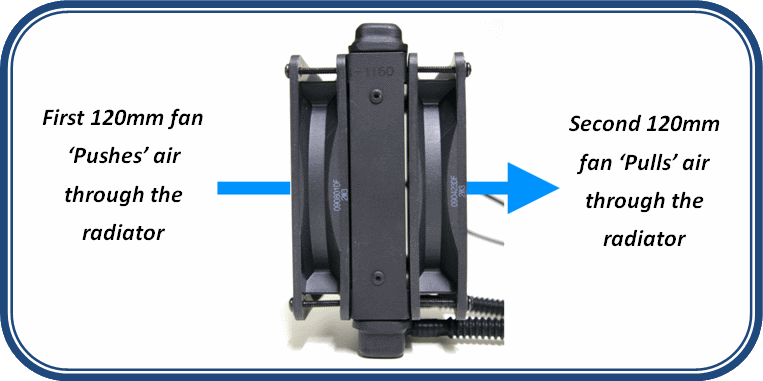

PratiikV,which cooling system do you have?A push-pull setup is for the cooling systems in your PC,not for the GPU,afaik.And as for the GPU,go for the 280X IF you do not plan to upgrade in the next 2-3 years...



Attaching Pics for the first time.So please tell me if you can see it or not.



[PratikV]

Okay,if you plan on upgrading your GPU within the next two years,then I too support your decision.Go for the R9 270X...if the 280X is out of budget for you at the moment...But a stronger GPU almost always never hurts..

And looks like I was only partially wrong about Corsair Link (it's the software I am talking about).It's free and helps you monitor your temps,but does not let you control your fan speed on the radiator in the H60.At least ,that is what it seems from this thread-

Corsair Link Commander - compatible with H60? - The Corsair Support Forums

I was of the opinion that you could control your fan speed via Corsair Link,even in the H60 and set them to performance mode to achieve noisier and cooler results.And as for Push-pull setup,it is only an arrangement of a couple of fans,one pushing air onto the radiator and the other fan pulling air from the radiator.I Googled a pic of your H60.So,to make sure,are there 4 screw holes at the back of your radiator?Just get a (120mm for the H60)fan,four screws (the long ones used to bolt 200mm fans onto the case) ,attach the fan (correctly,after looking at the direction of air flow of the fans and yes,the arrows do matter) ,plug in the fan on your motherboard and you have a push-pull setup.

Corsair Link Tech Zone

Corsair Link v2.

PratiikV,which cooling system do you have?A push-pull setup is for the cooling systems in your PC,not for the GPU,afaik.And as for the GPU,go for the 280X IF you do not plan to upgrade in the next 2-3 years...

View attachment 12651

Attaching Pics for the first time.So please tell me if you can see it or not.

Yeah i was suggested to get H60 or H60i.
What my question is if i go with 212 Evo and some more fans for 400R will it be more preferable.
If yes how to adjust / install fans in 400R for best PP setup



[bssunilreddy]

Okay,if you plan on upgrading your GPU within the next two years,then I too support your decision.Go for the R9 270X...if the 280X is out of budget for you at the moment...But a stronger GPU almost always never hurts..

And looks like I was only partially wrong about Corsair Link (it's the software I am talking about).It's free and helps you monitor your temps,but does not let you control your fan speed on the radiator in the H60.At least ,that is what it seems from this thread-

Corsair Link Commander - compatible with H60? - The Corsair Support Forums

I was of the opinion that you could control your fan speed via Corsair Link,even in the H60 and set them to performance mode to achieve noisier and cooler results.And as for Push-pull setup,it is only an arrangement of a couple of fans,one pushing air onto the raditor and the other fan pulling air from the radiator.I Googled a pic of your H60.So,to make sure,are there 4 screw holes at the back of your radiator?Just get a fan,four screws (the long ones used to bolt 200mm fans onto the case) ,attach the fan (correctly,after looking at the direction of air flow of the fans and yes,the arrows do matter) ,plug in the fan on your motherboard and you have a push-pull setup.

Corsair Link Tech Zone

Corsair Link v2.

PratiikV,which cooling system do you have?A push-pull setup is for the cooling systems in your PC,not for the GPU,afaik.And as for the GPU,go for the 280X IF you do not plan to upgrade in the next 2-3 years...

View attachment 12651

Attaching Pics for the first time.So please tell me if you can see it or not.

Thanks very much moltenskull. So I need H80i to fully use Corsair Link v2 with hardware support but in H60 I can only use the software to control the fans via PWM function. I was saying that the new H60 2013 Edition has a very easy heatsink setup unlike the older H60 which is very cumbersome to instal.
I was thinking of getting Samsung 840 EVO 1TB @ $585 from canada where my sister resides and when she comes to india in jan she can get me that SSD via Black Friday Deals or on Boxing Day(Dec,26).



[moltenskull]

PratiikV,That(212 Evo vs H60/H60i) is a question of air vs water cooling,buddy,which is pretty debatable.
A 212 Evo is considered a very VFM(Value For Money) air cooler because it's performance is comparable to the low-end Water Coolers/Liquid Coolers.Water Coolers like the H60/H60i have a weak pump,which does not circulate the water quick enough to dissipate heat generated.Also,there are some reports that the H60's pump failed.For anyone reading this,feel free to correct me .
A 212 Evo cools better ,is cheaper and easily maintained.But due to it's size as compared to the comparatively smaller liquid cooled CPU cooling unit (minus the radiator) and the fact that it blocks one RAM slot after being installed on some motherboards,led me to keep away from it.
As for fans,it is not a question of more=better.The direction of airflow does make a difference....So,go for high performance fans,less in number,but properly oriented.It will help you a lot.



[PratikV]

PratiikV,That(212 Evo vs H60/H60i) is a question of air vs water cooling,buddy,which is pretty debatable.
A 212 Evo is considered a very VFM(Value For Money) air cooler because it's performance is comparable to the low-end Water Coolers/Liquid Coolers.Water Coolers like the H60/H60i have a weak pump,which does not circulate the water quick enough to dissipate heat generated.Also,there are some reports that the H60's pump failed.For anyone reading this,feel free to correct me .
A 212 Evo cools better ,is cheaper and easily maintained.But due to it's size as compared to the comparatively smaller liquid cooled CPU cooling unit (minus the radiator) and the fact that it blocks one RAM slot after being installed on some motherboards,led me to keep away from it.
As for fans,it is not a question of more=better.The direction of airflow does make a difference....So,go for high performance fans,less in number,but properly oriented.It will help you a lot.

HAHA thanks man you just made my day... I'll go with 212 EVO right now if required ill change it...could you please let me know which fans will fit my case. could you please post a hyperlink to the product/FAN. Cause there are so much categories that i seriously get lost in them.



[moltenskull]

Hi bavusani,no need to thank me,buddy.

I read the comments in this Youtube Video-

Using Corsair Link to monitor and control your PC's cooling - YouTube

There is a guy who asks about the H100 and Corsair Link.And another one who answers that if you buy PWM (Pulse Width Modulation/Modulated) fans,then you can use it,though I for one won't exactly trust Youtube comments. And you are correct about the H60 being cumbersome to install,there is something about aligning this and fixing that,which was why Corsair changed to a magnetic design for their components in the H80i/H100i.If you regularly change your thermal paste/dismantle the H60 for cleaning purposes,then it sure is problematic to get it right every time..And thermal paste,as everyone knows,should be applied again if for some reason,you are unable to attach the heat sink. That is reason enough for going for the H60i... But once ,before going for the SSD and the H60 (2013 edition),try a push-pull design,set the fans to max and test load temps.If they seem higher,change the direction of both the fans (combo of both the fans can act as intake/exhaust,Corsair recommends Intake) and have a go again.No need for changing thermal paste/touching the CPU cooler unit.

PratiikV,

Be absolutely sure before buying the 212 Evo,for it requires TIM application to be done properly...That is what the fuss is all about...Incorrect application can have undesirable results...Just a warning.Btw,you might want to consider
CM 212 Evo (if you purchase it and find it unsuitable)+ H60 (your current budget)= (almost)H80i,which comes with pre-applied Thermal paste and a very easy setup.
Regarding the number of fans,

Carbide Series® 400R Mid-Tower Case - Carbide Series - Cases

Six 120mm/140mm fan mounts
Four 120mm fan mounts
One rear 120mm exhaust fan is included
Two front-mounted 120mm intake fans are included.
The side panel has a mesh screen with two 120mm/140mm fan mounts

Six fan mounts for 120mm/140mm fans[SUB]total[/SUB] = 4x120mm+2x140mm-(2+1)[included]x120mm fans=3 fans (1 120mm+2x140mm Fans) to be finally purchased.

For 140mm fans-Cooler Master CM Essentials 140 Cooler is okay (I could not find Noctua fans on any site atm,but anyone who does find them is free to post about them ).Look for a high CFM fan (if you don't mind noise).
For 120mm Fans- Follow the same statemnet I mentioned above (about high CFM).



[bssunilreddy]

Corsair Link software can be used but unlike the hardware one like H80i there is not much difference in performance while using the Corsair H60 without a Link. So the new H60 2013 Edition which a magnetic setup on top of its heatsink is very nice and convenience rather compared to the old H60 model. If I can find the required screws for a push-pull setup I will definetly do it and will post some pictures of it here.



[moltenskull]

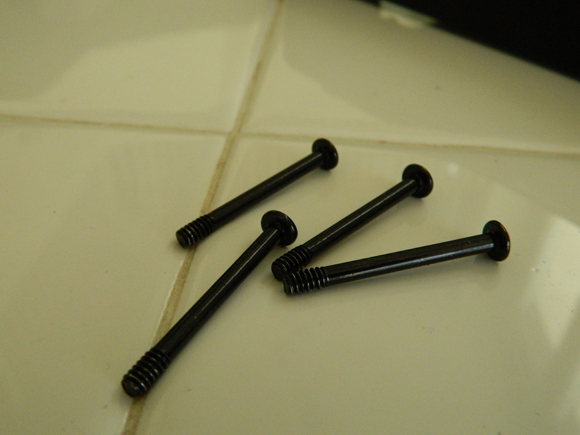

Note-Not my Picture.All credits go to the creator .

Bavusani,I think you need these screws for a push-pull setup of your H60.They come with 200mm fans.See if you can get them locally..



[bssunilreddy]

View attachment 12673

Note-Not my Picture.All credits go to the creator .

Bavusani,I think you need these screws for a push-pull setup of your H60.They come with 200mm fans.See if you can get them locally..

Will any of the vendors in CTC sell these screws (200mm fan screws) separately for a price or else I need to scrape that idea of push-pull setup of H60 from my mind forever. Anybody who can give a heads up from Hyderabad. Please help me TDF buddies.



[harshilsharma63]

You can use cable ties for fitting fans. They work very well.



[bssunilreddy]

You can use cable ties for fitting fans. They work very well.

But there will a lot of vibrations if using cable ties in a cabinet buddy.

What I need now are:
2 sets of y PWM fan splitters, (To connect 2 fans to the same MB fan header)
4 pieces of 200mm fan screws. (To enable push-pull setup on H60 Cooler's Radiator)

Please suggest & post a link as where can I find them for a quick sale buddies...



[moltenskull]

Bavusani,your case Corsair 300R ,if it has provision for a 200m fan,shouldn't it have those screws in it's box?I remember my HAF 912 had all types of them in it's packaging because it can support two 200mm fans...check your 300R's box,even a couple of 200mm fan screws will work,if you attach them diagonally.



[bssunilreddy]

Bavusani,your case Corsair 300R ,if it has provision for a 200m fan,shouldn't it have those screws in it's box?I remember my HAF 912 had all types of them in it's packaging because it can support two 200mm fans...check your 300R's box,even a couple of 200mm fan screws will work,if you attach them diagonally.

My Corsair 300R supports only 120mm and 140mm fans only. I need these now at least:2 sets of y PWM fan splitters, (To connect 2 fans to the same MB fan header)
4 pieces of 200mm fan screws. (To enable push-pull setup on H60 Cooler's Radiator)



[moltenskull]

It's a bit tough to find them here,buddy,if you are not purchasing the fans .You could ask locally at any computer repair shop/service centre.Maybe they can help you,though it seems unlikely.



[harshilsharma63]

Ask motor rewinding shops. They have all kinds or nuts and bolts lying around.



[bssunilreddy]

Ask motor rewinding shops. They have all kinds or nuts and bolts lying around.

OK. What about 2 sets of y PWM fan splitters? (To connect 2 fans to the same MB fan header)

Can anybody give me links as where I can get all the below items online under 50k...
Intel Core i5 4670K -16100,
Gigabyte GA-Z87M-D3H -9500,
Sapphire R9 270X 2GB Dual-X -15600,
Corsair H60 2013 Edition -4500,
Coolermaster 120mm 4 XtraFlo RED LED fans -2800,
Coolermaster 140mm 2 BC RED LED fans -1500,
TOTAL -50,000.



[harshilsharma63]

ok. what about 2 sets of y pwm fan splitters? (to connect 2 fans to the same mb fan header)

can anybody give me links as where i can get all the below items online under 50k...
Intel core i5 4670k -16100,
gigabyte ga-z87m-d3h -9500,
sapphire r9 270x 2gb dual-x -15600,
corsair h60 2013 edition -4500,
coolermaster 120mm 4 xtraflo red led fans -2800,
coolermaster 140mm 2 bc red led fans -1500,
total -50,000.

diy ftw!



[PratikV]

Dude where do you live. Get a quote from theitwares and theitdepot. They have very good offers

I have similar config like you. Do try itwares lamington road
