Urgent....Need IPS Monitor 24-27"

Status
Not open for further replies.
chimera201

chimera201

Wise Old Owl
If this is your card:
AMD Radeon™ HD 6670 Graphics

It says in the specs:
  • HDMI 1.4a with Stereoscopic 3D Frame Packing Format, Deep Color, xvYCC wide gamut support, and high bit-rate audio
Max resolution: 1920x1200

OP
shreeux

shreeux

Movie Buff
Nerevarine said:
I was actually wrong, wikipedia actually states HDMI 1.4a supports 1440p.
Try setting custom resolution in AMD control panel
Getting anomalous information from various sources.
AMD Page states HD 6670 can power 1920x1200 via HDMI, maybe its an AMD side limitation.
You can try setting custom resolution and see if it works.
Click to expand...

I tried everything...Let me know...If any...

This is Desktop Resolution maximum shows 1080...
*i.imgur.com/oER1p9p.png

This AMD settings shows 1080
*i.imgur.com/phc5EWO.png

This was custom to 1440p...manual settings
*i.imgur.com/ZgjmMRl.png

After custom to 1440p...Shows Error...
*i.imgur.com/TtRoB1n.png

Last edited by a moderator:
OP
shreeux

shreeux

Movie Buff
chimera201 said:
If this is your card:
AMD Radeon™ HD 6670 Graphics

It says in the specs:
  • HDMI 1.4a with Stereoscopic 3D Frame Packing Format, Deep Color, xvYCC wide gamut support, and high bit-rate audio
Max resolution: 1920x1200
Click to expand...

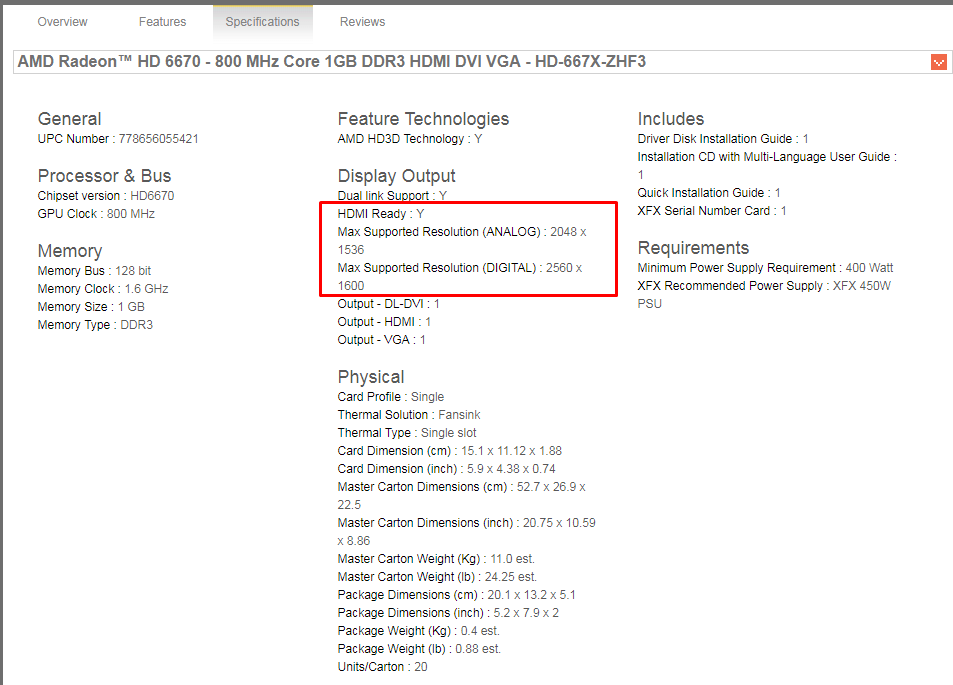

No...This correct one...XFX - United States - AMD Radeon™ HD 6670





chimera201

chimera201

Wise Old Owl
You would need:
- a card with displayport and a displayport cable
OR
- a card with HDMI port that supports 1440p resolution

They kind of did some cost cutting by not giving away the displayport cable. Other monitors usually come with DP cable. DP is standard for PC monitors not HDMI.

Nerevarine

Nerevarine

Incarnate
Actually, the HDMI port in the card is of HDMI 1.4 specification which supports 1440p, Its AMD that did cost cutting with the gpu itself, by not allowing any resolution higher than 1920x1200.
Strangely the card is capable of it via Dual Link DVI but AFAIK, there is no Dual Link DVI to HDMI adapter available.
Get a card with a Display Port, it should fix all worries.

OP
shreeux

shreeux

Movie Buff
Nerevarine said:
Actually, the HDMI port in the card is of HDMI 1.4 specification which supports 1440p, Its AMD that did cost cutting with the gpu itself, by not allowing any resolution higher than 1920x1200.
Strangely the card is capable of it via Dual Link DVI but AFAIK, there is no Dual Link DVI to HDMI adapter available.
Get a card with a Display Port, it should fix all worries.
Click to expand...

At least this time buy GPU future proof...With DP....Mostly DP with GPU Higher end only.

OP
shreeux

shreeux

Movie Buff
chimera201 said:
You would need:
- a card with displayport and a displayport cable
OR
- a card with HDMI port that supports 1440p resolution

They kind of did some cost cutting by not giving away the displayport cable. Other monitors usually come with DP cable. DP is standard for PC monitors not HDMI.
Click to expand...

I thought HDMI & DP are same... That's why bought blindly... Without more dig.

OP
shreeux

shreeux

Movie Buff
AMD GRAPHICS CARD FIREPRO W2100 2GB DDR3

This GPU...Its ok for Lenovo L27Q-10....Its for better than current GPU?

OP
shreeux

shreeux

Movie Buff
SaiyanGoku said:
Why do you want to buy a workstation GPU instead of a 1050Ti?
Click to expand...

Oops...Not aware of workstation GPU.

How to find perfect GPU any website with filters.

As you know...Now working in 1080p only....Even though support my monitor 1440p...Due to Display Port not in my Current GPU

SaiyanGoku

SaiyanGoku

kamehameha!!
shreeux said:
Oops...Not aware of workstation GPU.

How to find perfect GPU any website with filters.

As you know...Now working in 1080p only....Even though support my monitor 1440p...Due to Display Port not in my Current GPU
Click to expand...
Get a 1050 or 1050Ti if you want to play recent games at med settings 1080p.

SaiyanGoku

SaiyanGoku

kamehameha!!
shreeux said:
They are not mentioned any resolution.
Click to expand...

You could've easily googled it. If you want it just for display and not gaming, even a 2GB ddr5 1030 (for 6k) can do it using display port 1.2 or HDMI 1.4 with proper cables.
GeForce GT 1030 | Specifications | GeForce
GeForce GTX 1050 Graphics Cards from NVIDIA GeForce

Do not buy a GPU haphazardly without doing proper research.

OP
shreeux

shreeux

Movie Buff
SaiyanGoku said:
You could've easily googled it. If you want it just for display and not gaming, even a 2GB ddr5 1030 (for 6k) can do it using display port 1.2 or HDMI 1.4 with proper cables.
GeForce GT 1030 | Specifications | GeForce
GeForce GTX 1050 Graphics Cards from NVIDIA GeForce

Do not buy a GPU haphazardly without doing proper research.
Click to expand...


I like to buy future proof GPU to play moderately gaming, not for display purpose.

GTX comes with many branded...Which one to go? Confused more

What about AMD?

M

Minion

Conversation Architect
shreeux said:
Before buying...Again I check with my PC config to match for GPU?

Now using 400w PSU
Click to expand...
You have done a major blunder by getting a QHD monitor without considering what GPU you have. For QHD GTX 1070 is suitable but they way expensive around 40k but a GTX 1060 will suffice for now.
Get this GRAPHICS CARD GIGABYTE GEFORCE GTX 1060 6GB OC EDITION WINDFORCE GDDR5

with this GPU you can play games in ultra quality with 40-50 FPS on your QHD monitors but in future you have to turn down quality to able to play games on your QHD monitor

For PSU get
CORSAIR SMPS TX550M - 550 WATT 80 PLUS GOLD CERTIFICATION SEMI MODULAR PSU WITH ACTIVE PFC

Please mention your whole computer configuration so we can suggest you better

Last edited:
