Need PC Case and PSU Without RGB With Silent Proof

OP
shreeux

shreeux

Movie Buff
You can use 2 NVMe drive,just that NVMe drive in 1st m2 slot will disable 2 sata ports & NVMe drive in 2nd m2 slot will disable all other pcie slots except the main one intended for graphics card. 2nd m2 slot is NVMe ssd only & it is slower than 1st m2 slot(pcie x2 vs pcie x4 for m2_1).

This is not an issue unless you plan on using more than 4 sata ports in future.Even then you can simply buy a sata pcie card with 2 sata ports for ~1000 from amazon.

Confused, after reading Manual only understand.

How to choose NVME cards for both slots, All are identical.
Post any links for both slots.


whitestar_999

Super Moderator
Staff member
Buy Online ADATA XPG 512GB SX8200 Pro PCIe Gen3x4 M.2 2280 SSD ASX8200PNP-512GT-C In India
Buy Online ADATA XPG 256GB SX8200 Pro PCIe Gen3x4 M.2 2280 SSD ASX8200PNP-256GT-C In India

Why are you planning on spending so much money on two NVMe drives?Majority use only one NVMe drive(as OS drive) & even then the difference over a good ssd like 860 evo are not that significant for typical daily tasks.

OP
shreeux

shreeux

Movie Buff
Buy Online ADATA XPG 512GB SX8200 Pro PCIe Gen3x4 M.2 2280 SSD ASX8200PNP-512GT-C In India
Buy Online ADATA XPG 256GB SX8200 Pro PCIe Gen3x4 M.2 2280 SSD ASX8200PNP-256GT-C In India

Why are you planning on spending so much money on two NVMe drives?Majority use only one NVMe drive(as OS drive) & even then the difference over a good ssd like 860 evo are not that significant for typical daily tasks.

No, As of now using 256 GB in M.2 Slot -1 only

My doubt is,
What type of card use in M.2 Slot - 2.
Just curious to know...This will buy in future or later.


whitestar_999

Super Moderator
Staff member
^^Not clear,you are planning on using in future or you already got some ssd & using it in some system.

In msi B450 gaming pro carbon both m2_1 & m2_2 slot supports m2.NVMe but m2.sata is only supported by m2_1 slot.Also m2_2 slot has lower speed than m2_1 slot for same m2.NVMe ssd.

OP
shreeux

shreeux

Movie Buff
^^Not clear,you are planning on using in future or you already got some ssd & using it in some system.

In msi B450 gaming pro carbon both m2_1 & m2_2 slot supports m2.NVMe but m2.sata is only supported by m2_1 slot.Also m2_2 slot has lower speed than m2_1 slot for same m2.NVMe ssd.

Sorry, wrong typo... As of now plan to buy.

As per Mobos manual not mentioned
Any speed of slots.


whitestar_999

Super Moderator
Staff member
Ok.

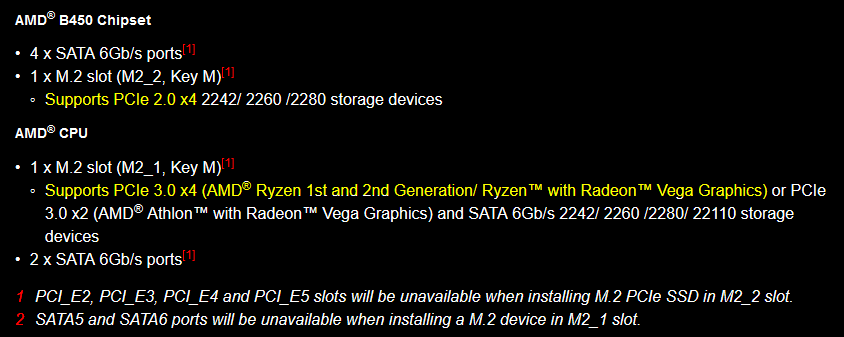

Yes,it is mentioned as m2_1 slot supporting pcie 3.0 x4 with ryzen & m2_2 slot supporting pcie 2.0 x4 with ryzen.

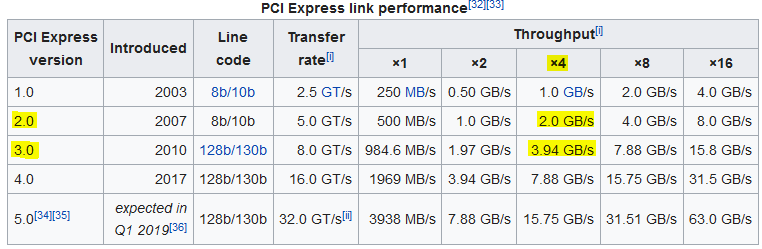

PCI Express - Wikipedia

OP
shreeux

shreeux

Movie Buff
In MSI website...in compatibility section... There are 3 memory section available...Which one to select?

*i.imgur.com/J04x2DRl.jpg

Last edited by a moderator:

whitestar_999

Super Moderator
Staff member
Rx-1x00 means ryzen 1200/1300/1600 etc
Rx-2x00G/GE means ryzen 2200g/2400g/Athlon 200GE
Rx-2x00 means ryzen 2600/2700 etc

Memory compatibility list is only for reference,there are no guarantees that a ram on this list will definitely work & a ram not on this list will not work.It is better to read comments on amazon india & amazon global/US site. 99% chance that any ddr4 ram you buy today will work with 2nd gen ryzen.

OP
shreeux

shreeux

Movie Buff
Today started to procure one by one...

Today bought in Delta...

Cooler Master Masterbox MB511-RGB (BLACK) - 5,750/-
MSI B450 Gaming Pro Carbon AC - 12,800/-

*i.imgur.com/z6ilyO2.jpg?1

OP
shreeux

shreeux

Movie Buff
Buy Online ADATA XPG 256GB SX8200 Pro PCIe Gen3x4 M.2 2280 SSD ASX8200PNP-256GT-C In India

Ordered... Expect on Monday.

OP
shreeux

shreeux

Movie Buff
Rx-1x00 means ryzen 1200/1300/1600 etc
Rx-2x00G/GE means ryzen 2200g/2400g/Athlon 200GE
Rx-2x00 means ryzen 2600/2700 etc

Memory compatibility list is only for reference,there are no guarantees that a ram on this list will definitely work & a ram not on this list will not work.It is better to read comments on amazon india & amazon global/US site. 99% chance that any ddr4 ram you buy today will work with 2nd gen ryzen.

*i.imgur.com/HHXNKZm.jpg

Above image, In headline

"Chipset" column - Samsung also there It's means Samsung B-die Chip?

"Side" Column - Single/Dual mentioned. Means what?
Which one is best?

"1 | 2 | 4 DIMM" Column - There are 4 slots in Mother Board...Why no.3 missing?


whitestar_999

Super Moderator
Staff member
Samsung die comes in various versions:B,E.No way to know for sure but based on online comments 2800MHz & above ram with CL14 timings are almost always samsung B-die. Also rams above 3200MHz are also mostly use samsung B-die irrespective of timings(above 3200MHz it is very difficult to manufacture ram with CL16 or lower timings). In short,forget about samsung-b die :)

All 16gb ram sticks are dual side.all 4gb ram sticks are single side.almost all usually available 8gb ram sticks are single side except for some hard to find models that are dual side.

People usually use single ram stick,two ram sticks(for dual channel feature) & 4 ram sticks(quad channel feature) so testing done for these 3 configurations as very few people run system with 3 ram sticks(although it will still run fine).

OP
shreeux

shreeux

Movie Buff
@whitestar_999

Ordered Ryzen 5 2600.

Need to buy any Thermal paste?

Suggest if any with link details.

Or

Default Thermal paste in Stock cooler is enough?



Noctua NT-H1 Thermal Compound


whitestar_999

Super Moderator
Staff member
Default thermal paste is good enough for initial 1-2 years. In any case check the cpu temps regularly by running some software like Speccy 1.32.740 for PC Windows or *www.hwinfo.com/download/

OP
shreeux

shreeux

Movie Buff
Buy Online ADATA XPG 256GB SX8200 Pro PCIe Gen3x4 M.2 2280 SSD ASX8200PNP-256GT-C In India

Why are you planning on spending so much money on two NVMe drives?Majority use only one NVMe drive(as OS drive) & even then the difference over a good ssd like 860 evo are not that significant for typical daily tasks.

I was ordered as per the link product was well received today.

But as per link details...read/write speeds of 3500/3000MB per second.

Check image as per box shows, read/write speeds of 3500/1200MB per second.
But, Part no. Same

*i.imgur.com/QRzVYIb.jpg
